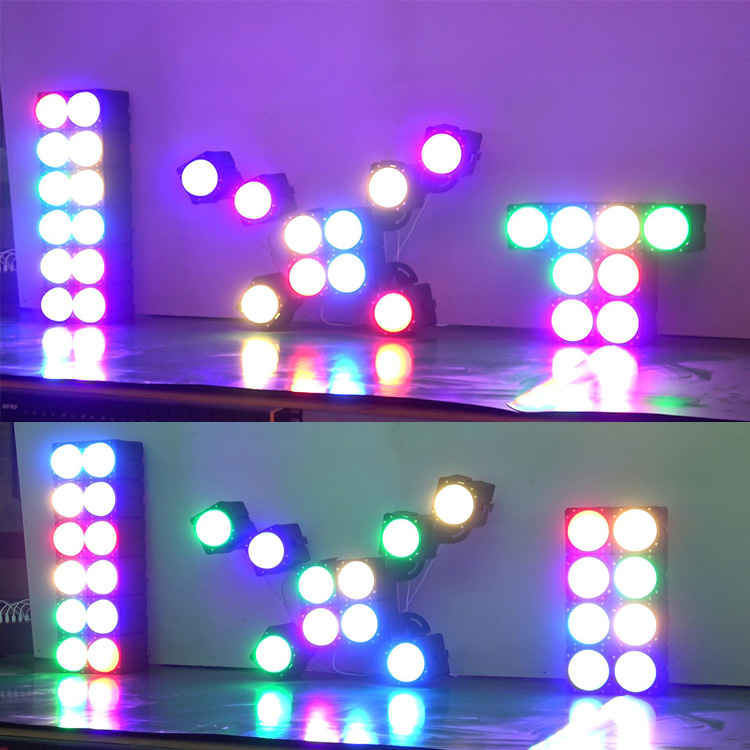

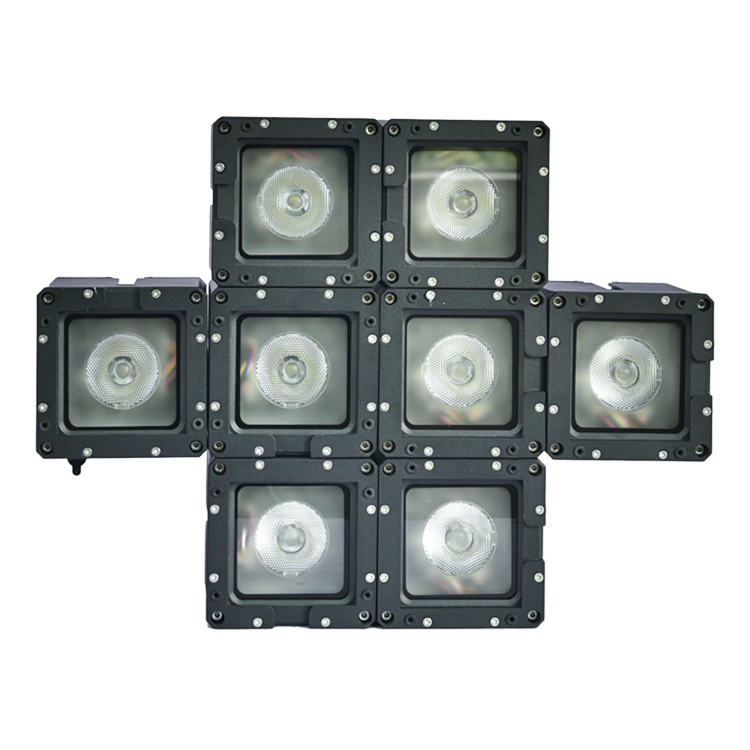

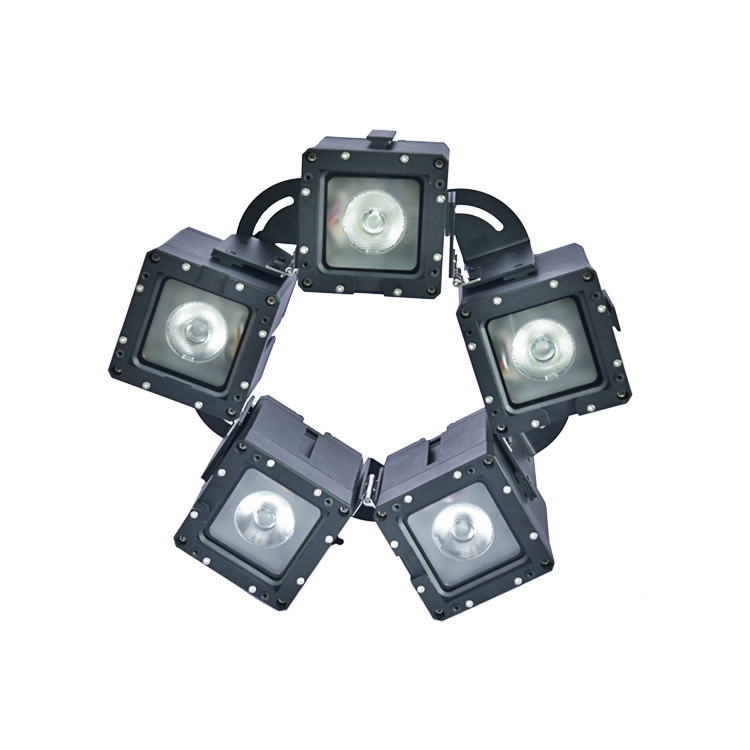

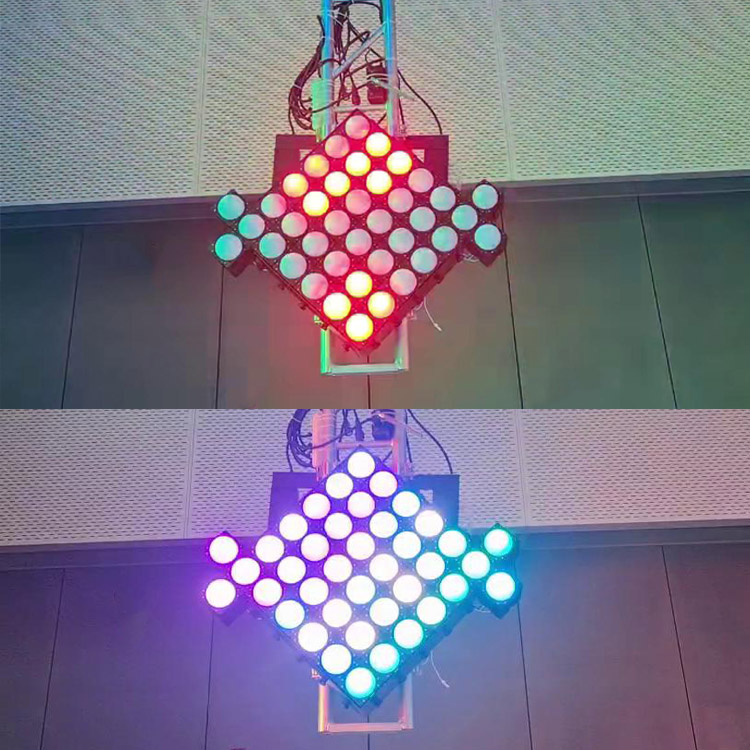

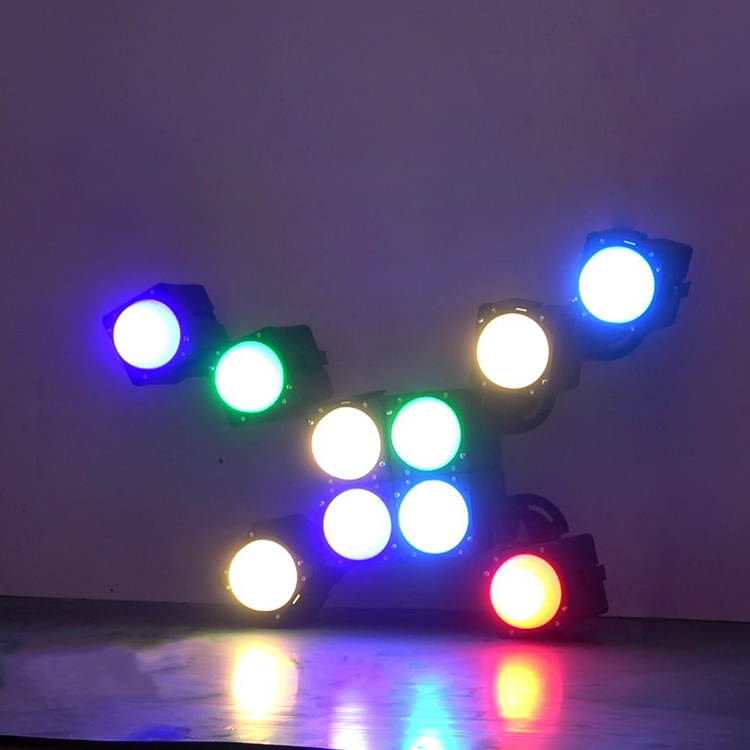

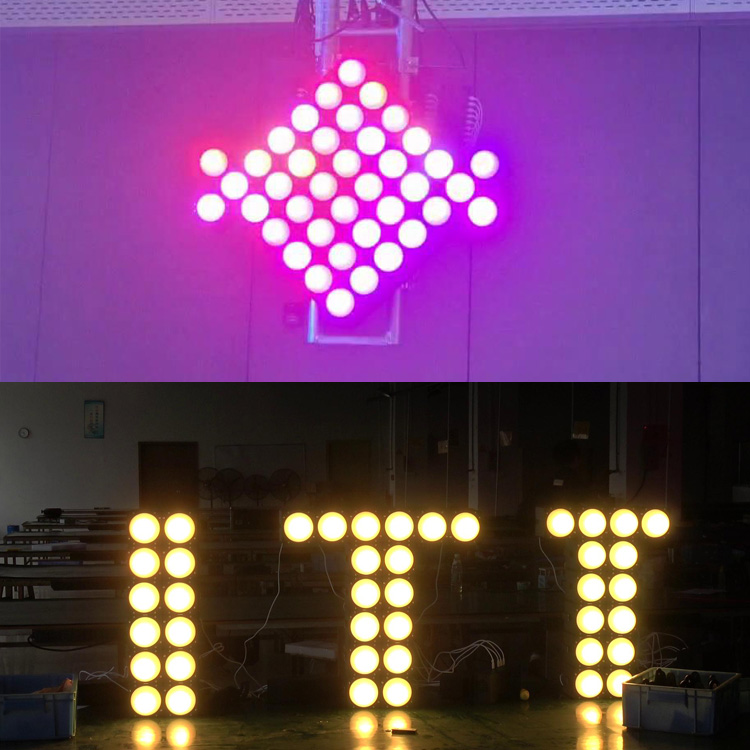

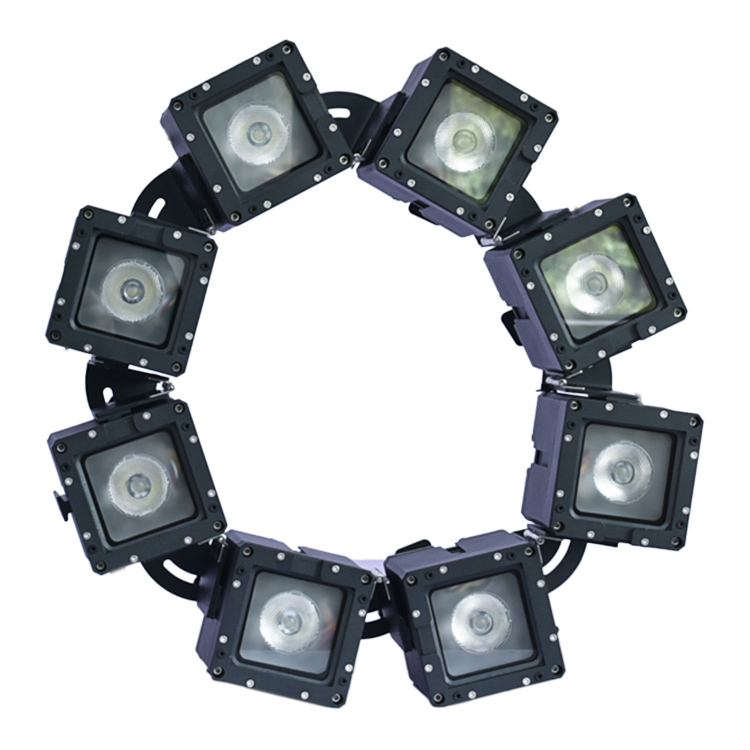

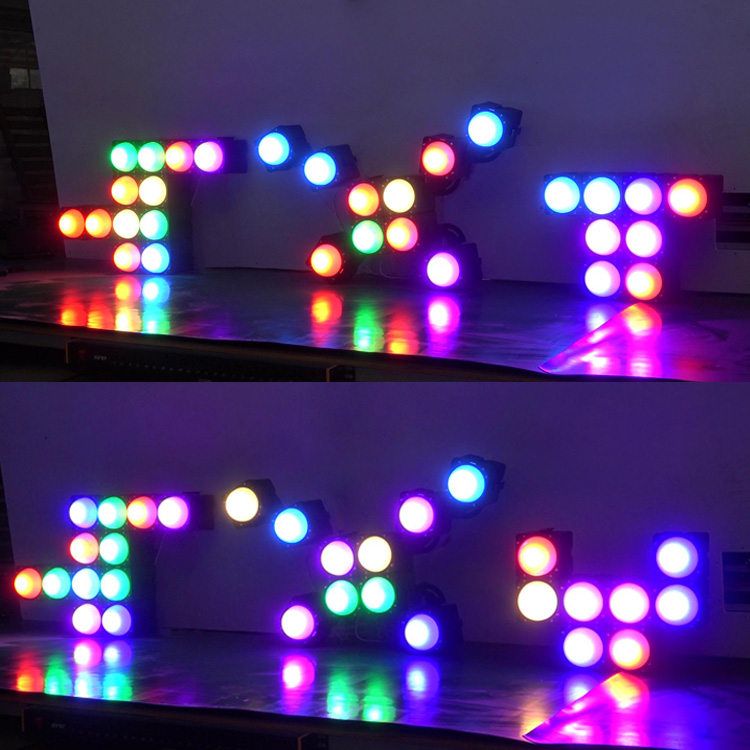

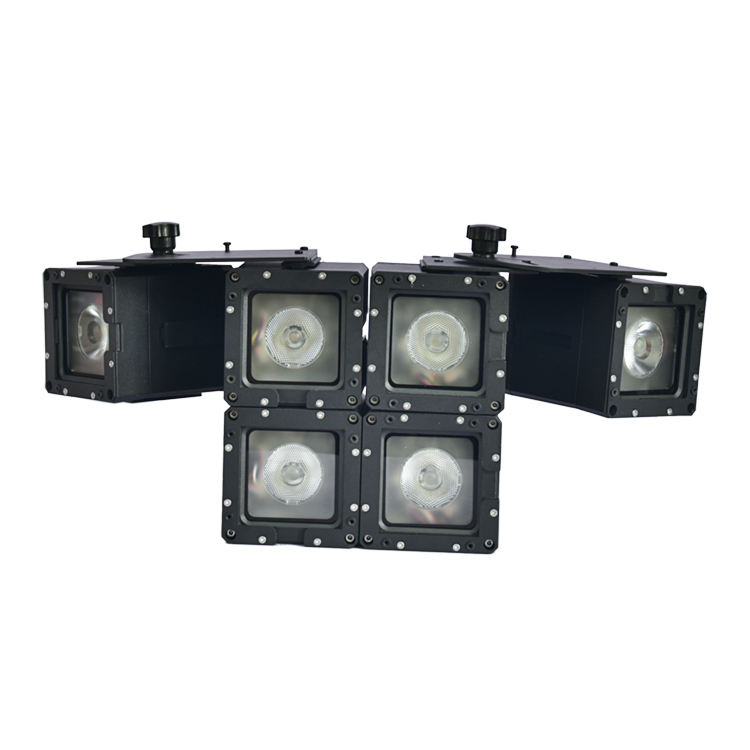

Brick Q2001/ Brick S2001
16W/23W | 1PCS | 4-IN-1/6-IN-1 | IP65 | Strobe | Battery | Touch button | DMX512
Specifications
Video
Model
Brick Q2001
Brick S2001
Input voltage
DC 8.4V
DC 8.4V
Power consumption
23W
16W
Lamp Type
20W LED 4-IN-1 R, G, B, L(1PCS)
20W LED 6-in-1 R, G, B, A, L, C(1PCS)
Life span
50000~100000hours
50000~100000hours
PWM Dimmer
1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/20000HZ
1200HZ/2400HZ/4000HZ/12000HZ/16000HZ/
20000HZ
Control Signal
DMX512/ 2.4G/ RDM
DMX512/ 2.4G/ RDM
Angle
15°, 25°, 45° Optional
15°, 25°, 45° Optional
Channel
10CH、6CH、4CH
12CH、8CH、6CH
Function Effect
dimmer, strobe, gradual change
dimmer, strobe, gradual change
Touch buttons, automatic lock key
Touch buttons, automatic lock key

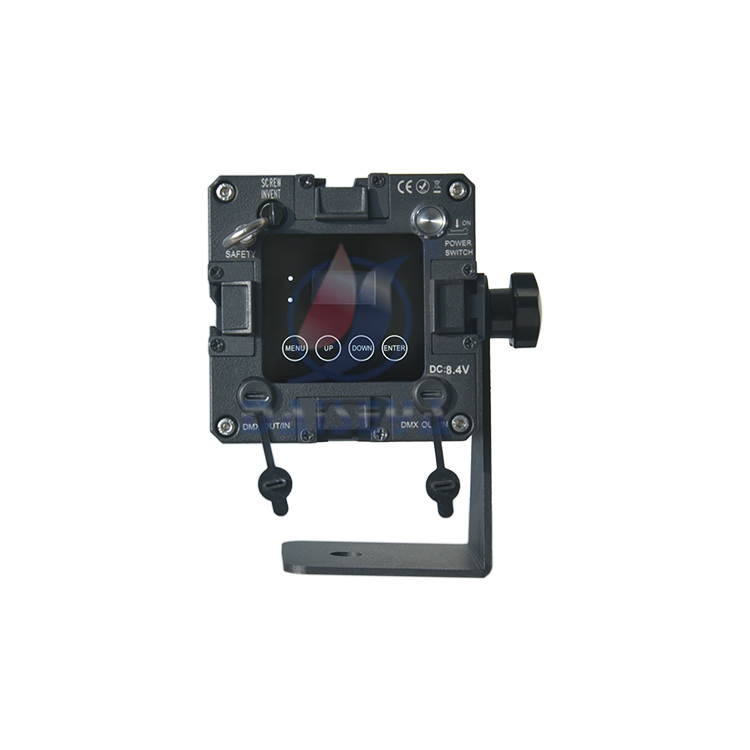

4 button touch control panel
4 button touch control panel
Built-in temperature control system, overheat protection
Built-in 18650 large capacity lithium battery, compatible Swedish wireless DMX module
Battery capacity
8.4V/7.5A/55.5W
8.4V/7.5A/55.5W
Charger
8.4V*2A
8.4V*2A
Charging time
About 5 hours
About 5 hours
Discharge time
Full bright ≥2.5 hours
Full bright ≥2.5 hours, Single color≥13 hours,
2 Colors≥5 hours,3 Colors≥4 hours
Cooling mode
Natural Convection
Natural Convection
Anti-electricity intension
1.5KV
1.5KV
Insulation Resistance
>2MΩ
>2MΩ
Protection
IP65
IP65
Size
100*100*113.5mm
100*100*113.5mm
Net weight
1.5Kg (With Stand 1.6Kg)
1.5Kg (With Stand 1.6Kg)
