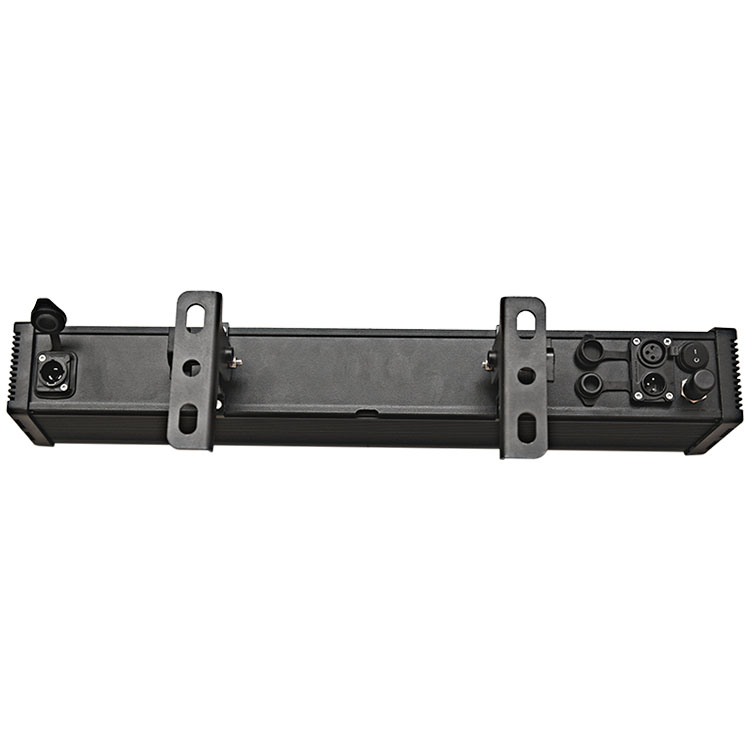

LQ1508-Matrix-BA-WI

LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
LQ1508-Matrix-BA-WI
Share Online Consultation

95W | 8PCS | 4-IN-1 | IP20/IP65 | Auto run | Strobe | Battery | Touch button | DMX512 | Dot Matrix



Input voltage: AC100V-264V/47-63Hz
Power Consumption: 95W
Lamp Type: 15W LED 4-in-1 R,G,B,W(8PCS)
Life span: 50000~100000hours
PWM Dimmer: 4300Hz(16666 grades)
Control Signal: DMX512,WI
Angle: 10*40 °
Control mode: stand alone/Master/Slaver
Channel: 3CH,4CH,5CH,10CH,16CH,24CH,32CH,40CH
Function Effect: dimmer, strobe, gradual change, rainbow, self program running
Built-in temperature control measurement function, when LED work overheated, intelligent reduce LED output power, current power output and temperature can be viewed.
Cooling mode: Natural Convection
Built-in lithium battery, compatible Swedish wireless DMX module
Battery: 22.2V/10Ah(full bright About 3 hours, Single color≥10 hours, 2 colors≥5 hours, 3 colors≥3 hours.
Charging time: About 4 hours(25.8V/3.7A)
Anti-electricity intension: 1.5KV
Insulation Resistance: >2MΩ
Protection: IP65/IP20
Size: 576x180x94.5mm
Net weight: 5.2Kg
